Site Roméo Golf
Deep Excavation Shoring System
Project Name
Site Roméo Golf
Project Location
Avenue de la justice 5400
Project Status
Stage 1 Completed
Project Type
Deep Excavation Shoring
Project Overview
The Roméo Golf Project involves the construction of a deep excavation shoring system designed to support excavation works reaching a depth of 13 meters. The retaining structure consists of spaced bored piles with a diameter of 60 cm, installed at regular intervals to form the primary support wall. To provide sufficient lateral resistance and maintain stability throughout the excavation phases, the system is reinforced with three rows of prestressed soil anchors.
The subsurface conditions at the site include loose to medium dense pure sand, underlain by a cemented sand layer. These soil formations present contrasting strength characteristics, requiring careful attention during the design and installation of the shoring components. Due to the presence of a high groundwater table, a dewatering system was implemented to lower the water level below the final excavation depth, ensuring dry and safe working conditions throughout construction.
The adopted shoring and dewatering system balances soil behavior, water pressure, and structural requirements, creating a controlled environment for the continuation of excavation works.
Key Project Highlights
13 m Deep Excavation:
Supported by a robust shoring and dewatering system.60 cm Spaced Bored Piles:
Forming the primary retaining wall and lateral support.Three Rows of Prestressed Anchors:
Providing essential horizontal restraint and wall stability.Loose to Medium Dense Sand Profile:
Engineering design adapted to soil variability and strength differences.Cemented Sand Layer:
Required careful pile installation and drilling control.High Groundwater Table:
Managed with an efficient dewatering system for safe excavation.Stage 1 Completed:
Excavation and shoring works executed safely and within parameters.
| Project Challenges | Engineering Solutions |
|---|---|
| Loose to Medium Dense Sand Requiring Controlled Excavation | Spaced Bored Piles (60 cm) Installed to Form a Stable Retaining Structure |
| Need for Lateral Stability in a 13 m Deep Excavation | Three Rows of Prestressed Ground Anchors Providing Horizontal Restraint |
| High Groundwater Table Risking Seepage and Instability | Dewatering System Implemented to Lower Water Level Below Excavation Depth |
| Cemented Sand Layer Requiring Careful Drilling and Pile Penetration | Adjusted Drilling Techniques to Ensure Proper Pile Seating and Stability |
| Safety and Performance Monitoring Needed During Excavation Stages | Continuous Monitoring of Anchor Loads, Wall Deflection, and Excavation Progress |

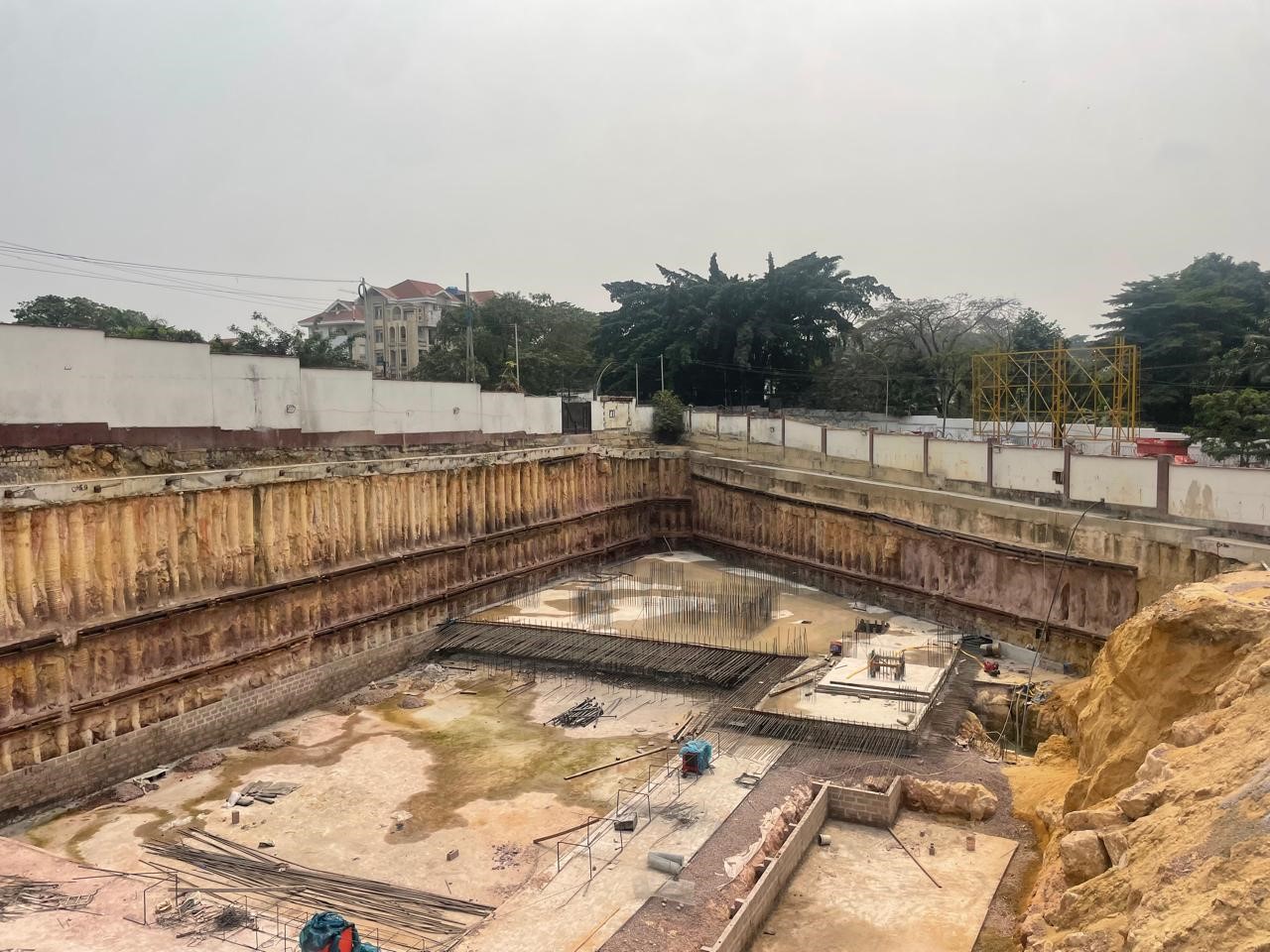

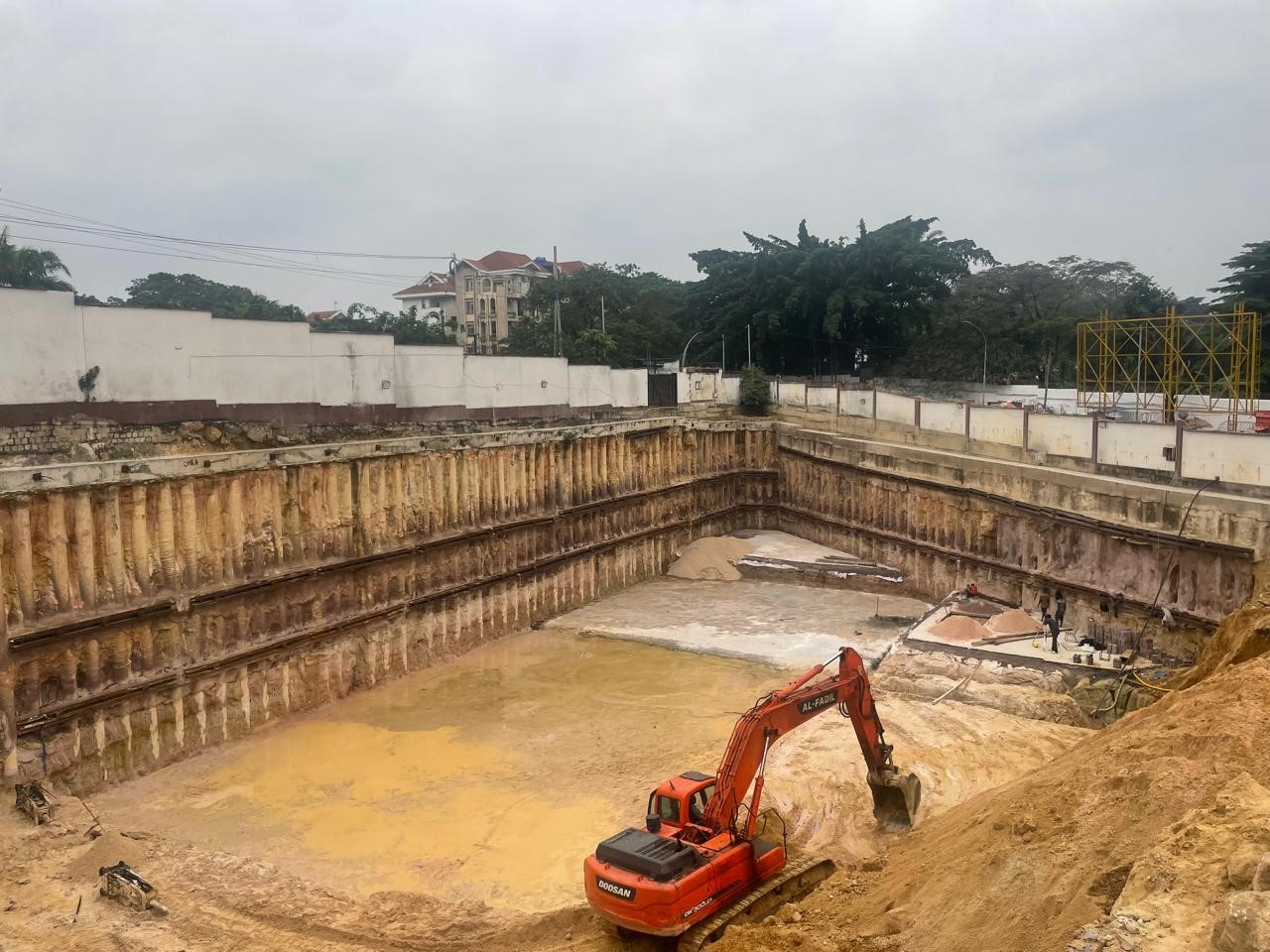

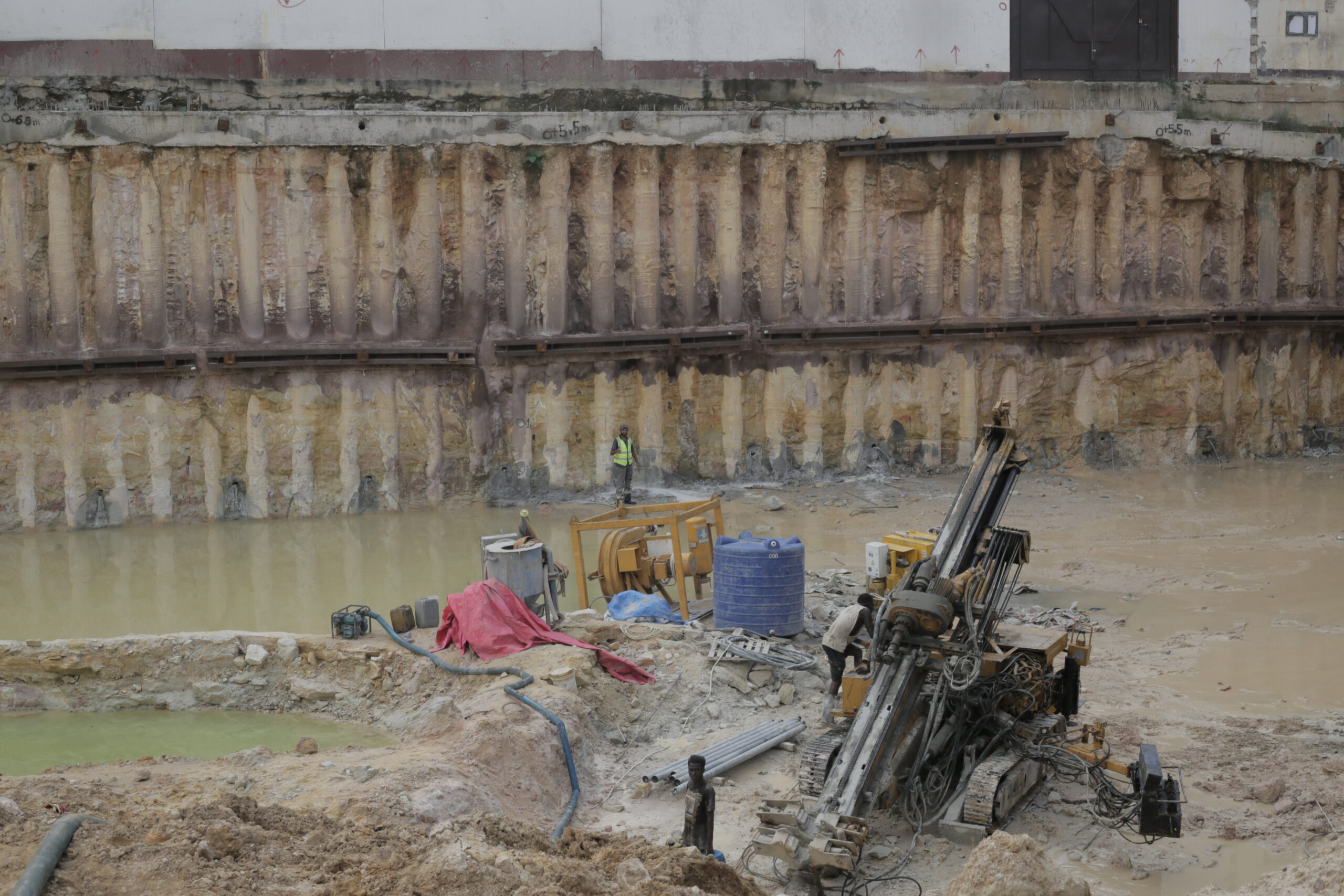

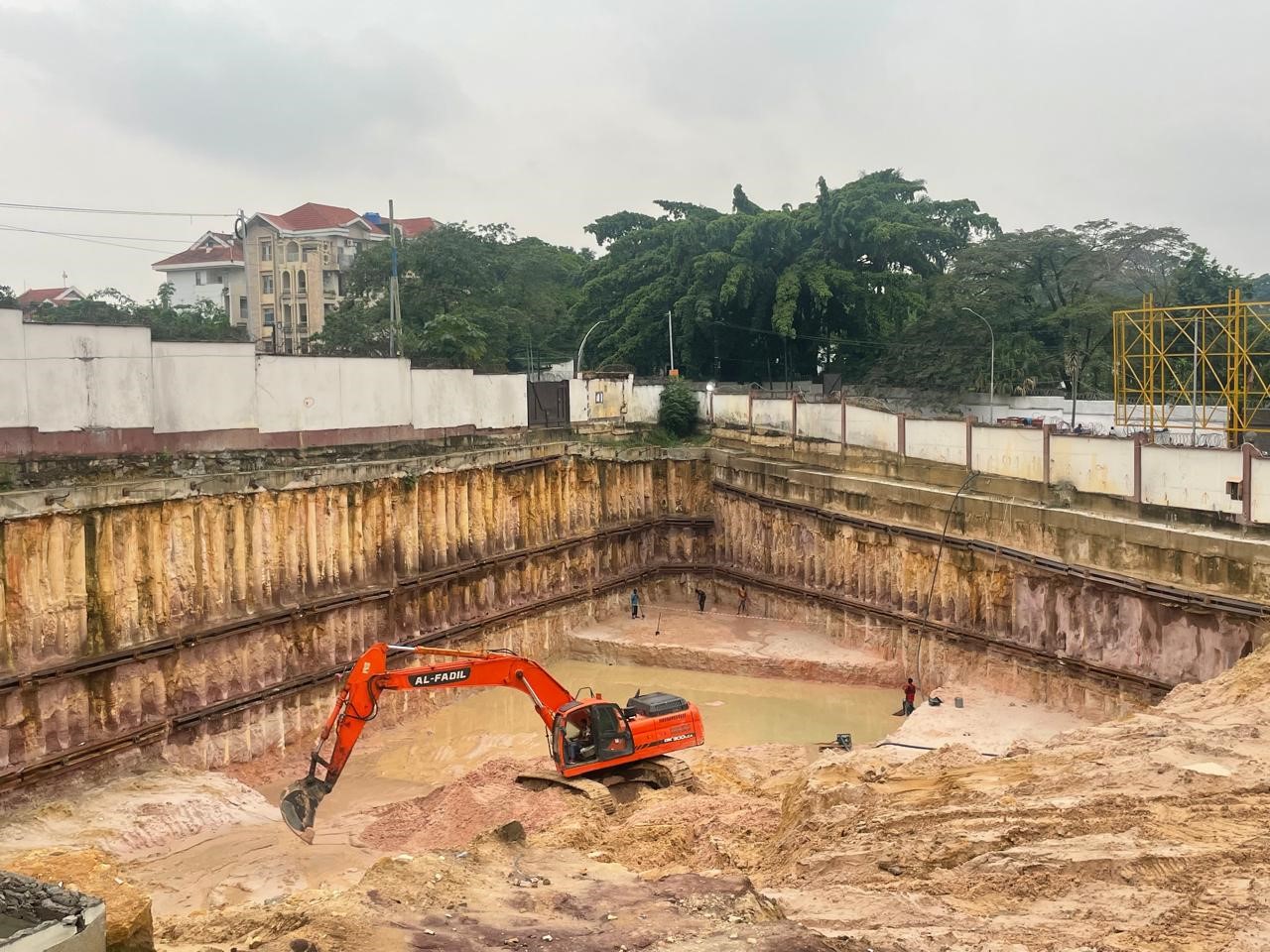

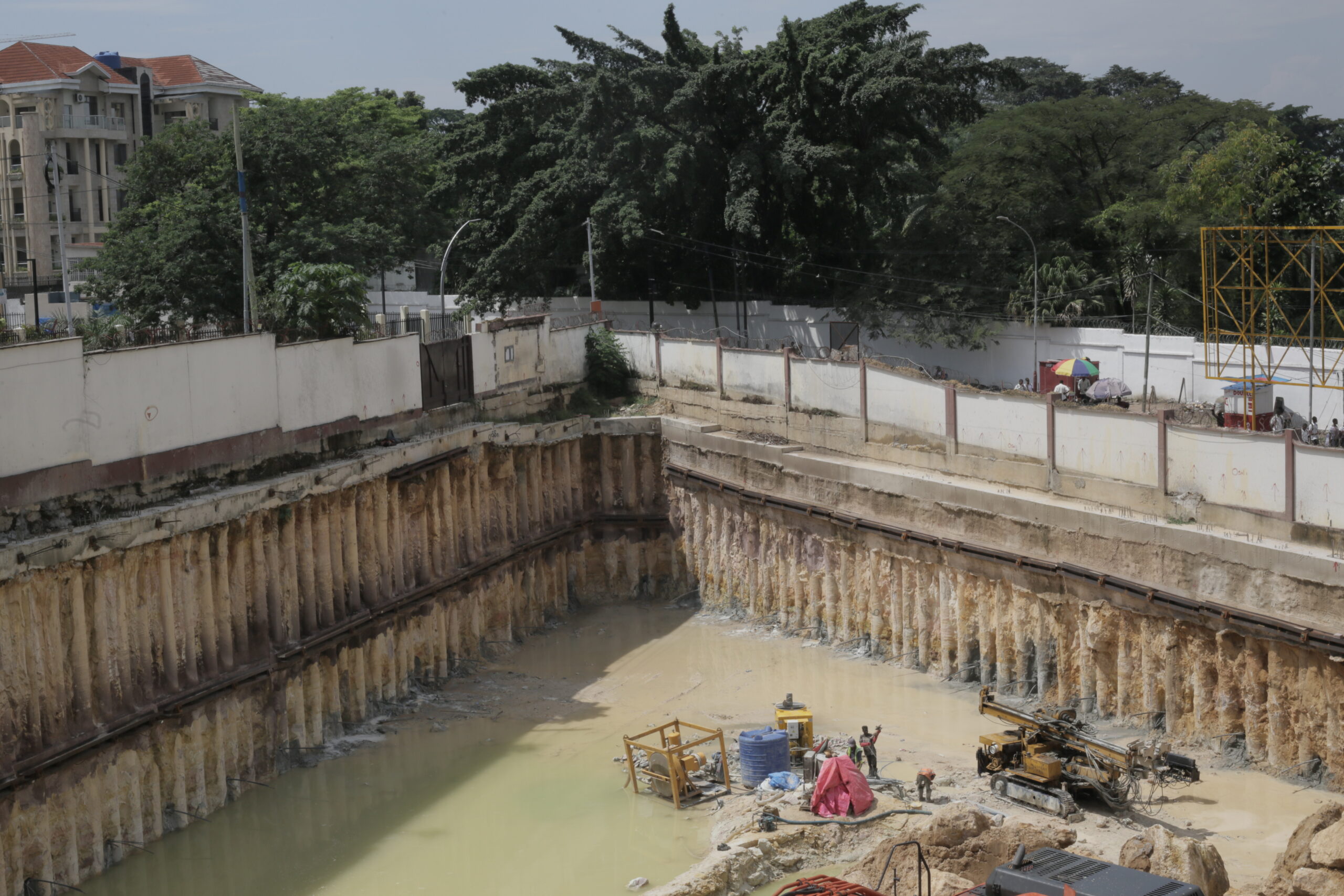

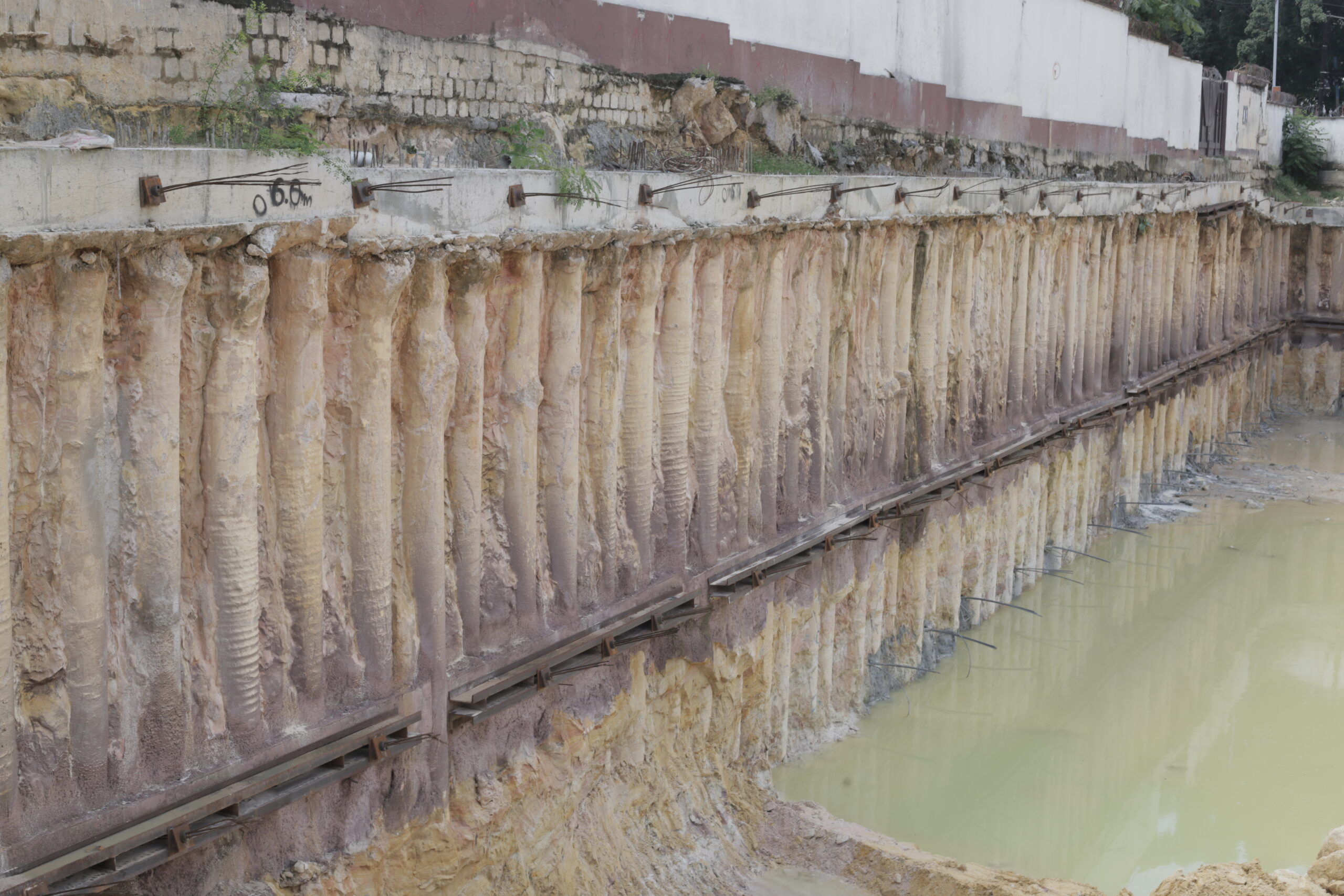

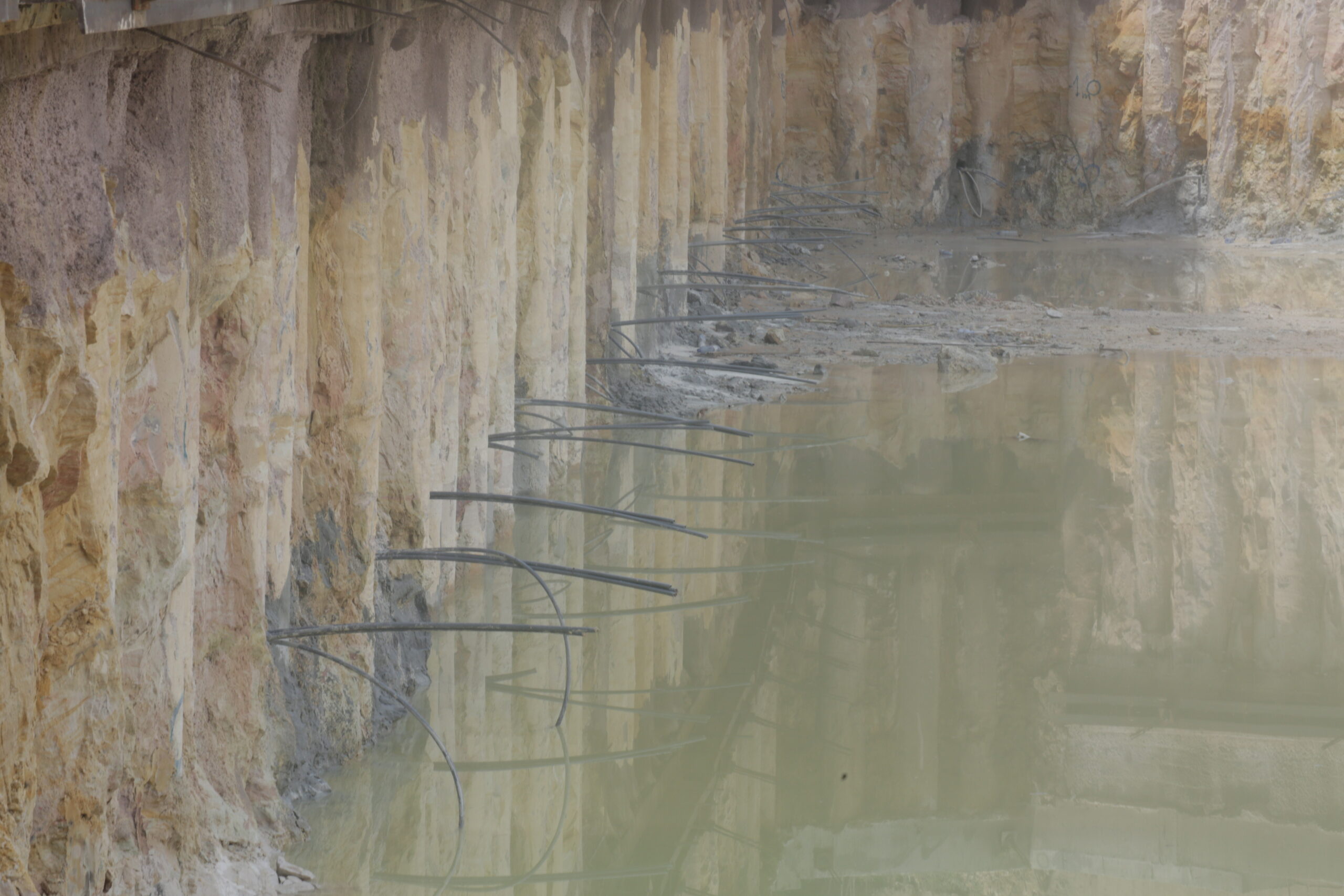

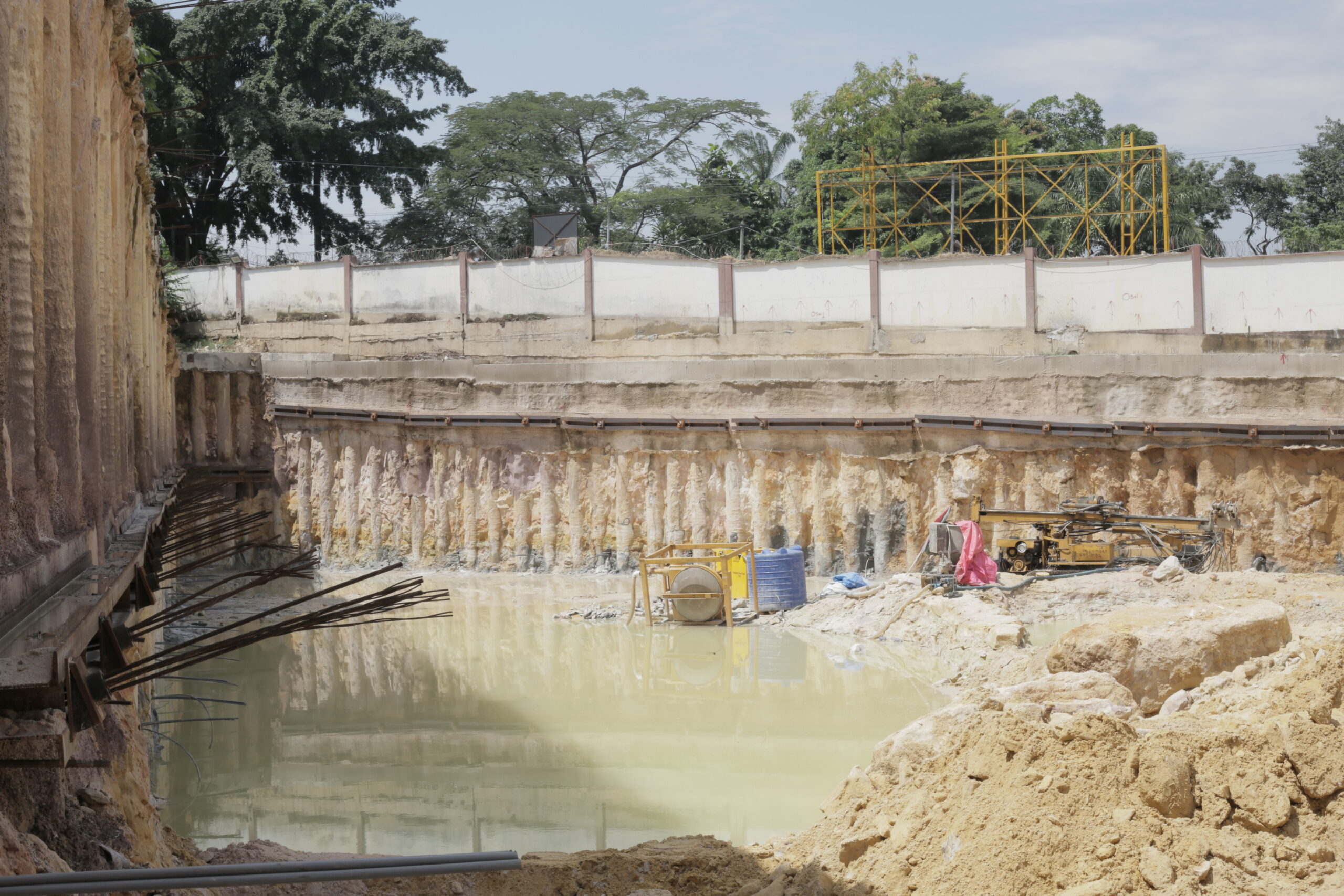

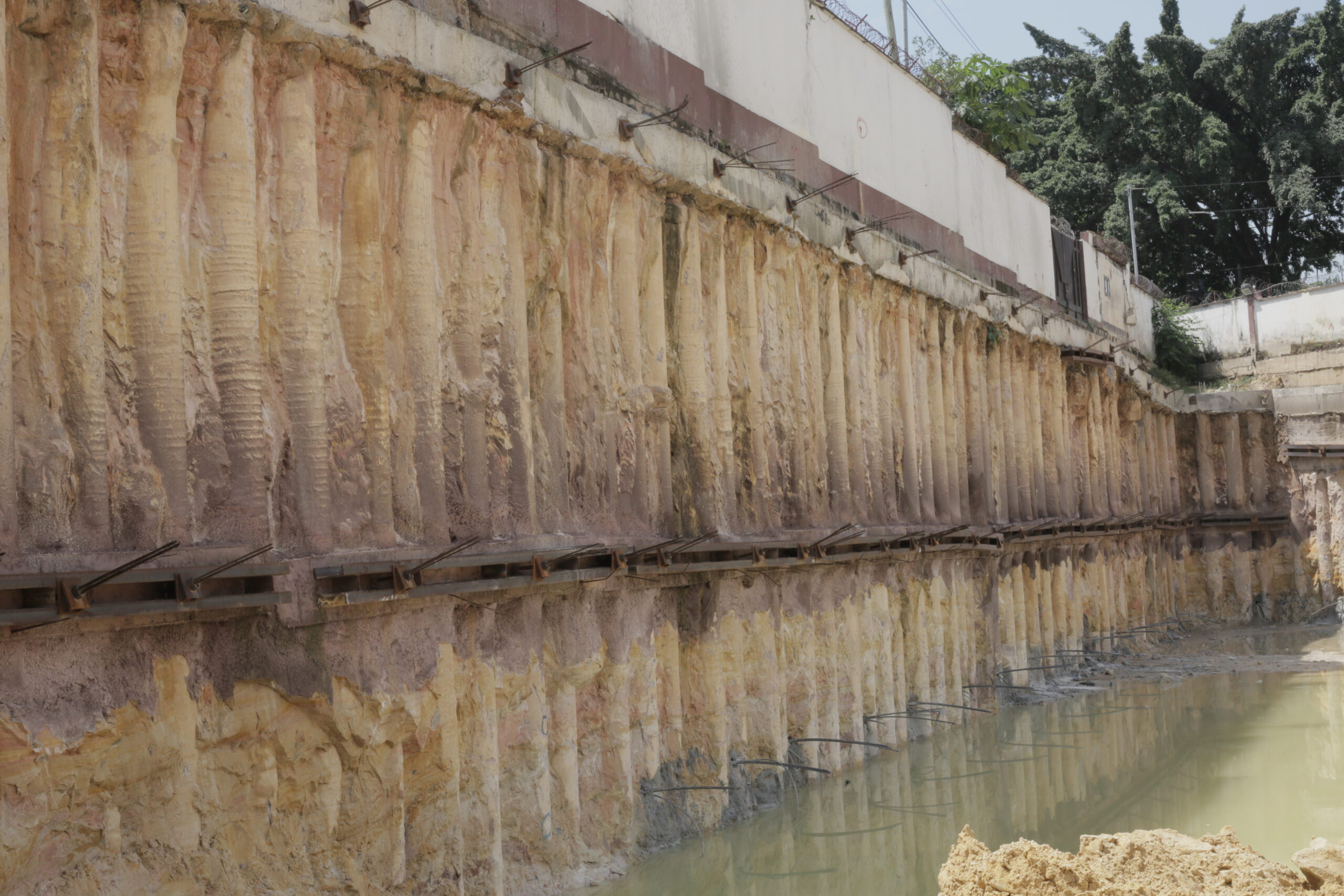

Project Gallery
